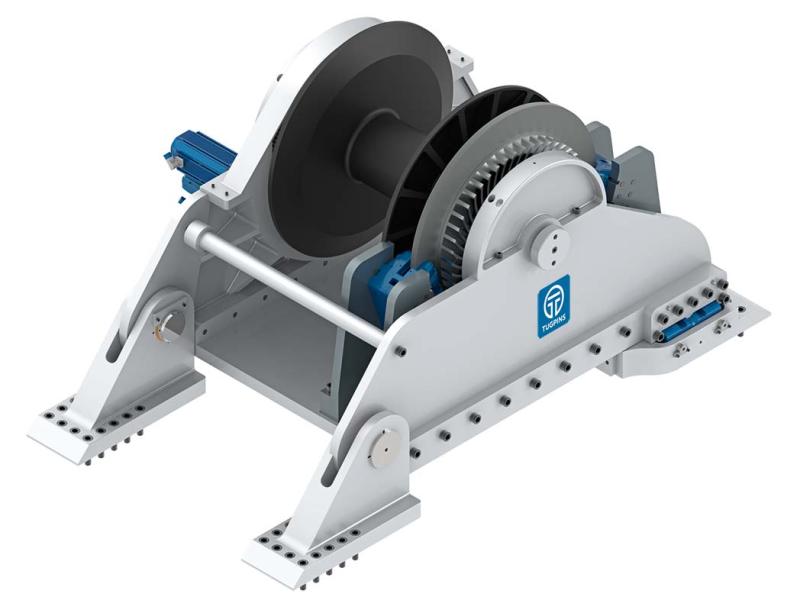

Caliper Escort Render & Recovery Winch

Technical specification
  • Brake holding force (kN)
    2150
  • Synthetic rope diameter (mm)
    65
  • Nominal pull (kN)
    150
  • Line storage capacity (m)
    180
  • Nominal line speed (m/min)
    70
  • Weight (mt)
    15
  • Drum diameter (mm)
    400
  • Flange diameter (mm)
    1400
  • Distance between flanges (mm)
    700
  • Number of electric motors
    8
  • Power per motor (kW)
    7,5
  • Maximum power total (kW)
    80
  • Number of caliper breaks
    4
Data as mentioned in this fact sheet may be subject to change.
Key benefits
  • Smart modular design
  • Low and easy maintenance
  • Reduced down time
  • Multiple electric motor redundancy
  • Multiple caliper brake redundancy
  • One footprint
  • No gear box
  • Reduced mass inertia
  • Quick response time
  • Reduced total weight
  • Reduced power requirements
  • Less heat development
  • Reduced control box space
  • Controlled emergency brake release
  • Fixed drumshaft
  • Easier alignment
  • Compact HPU
  • Reduced hydraulics
  • High recovery speed
